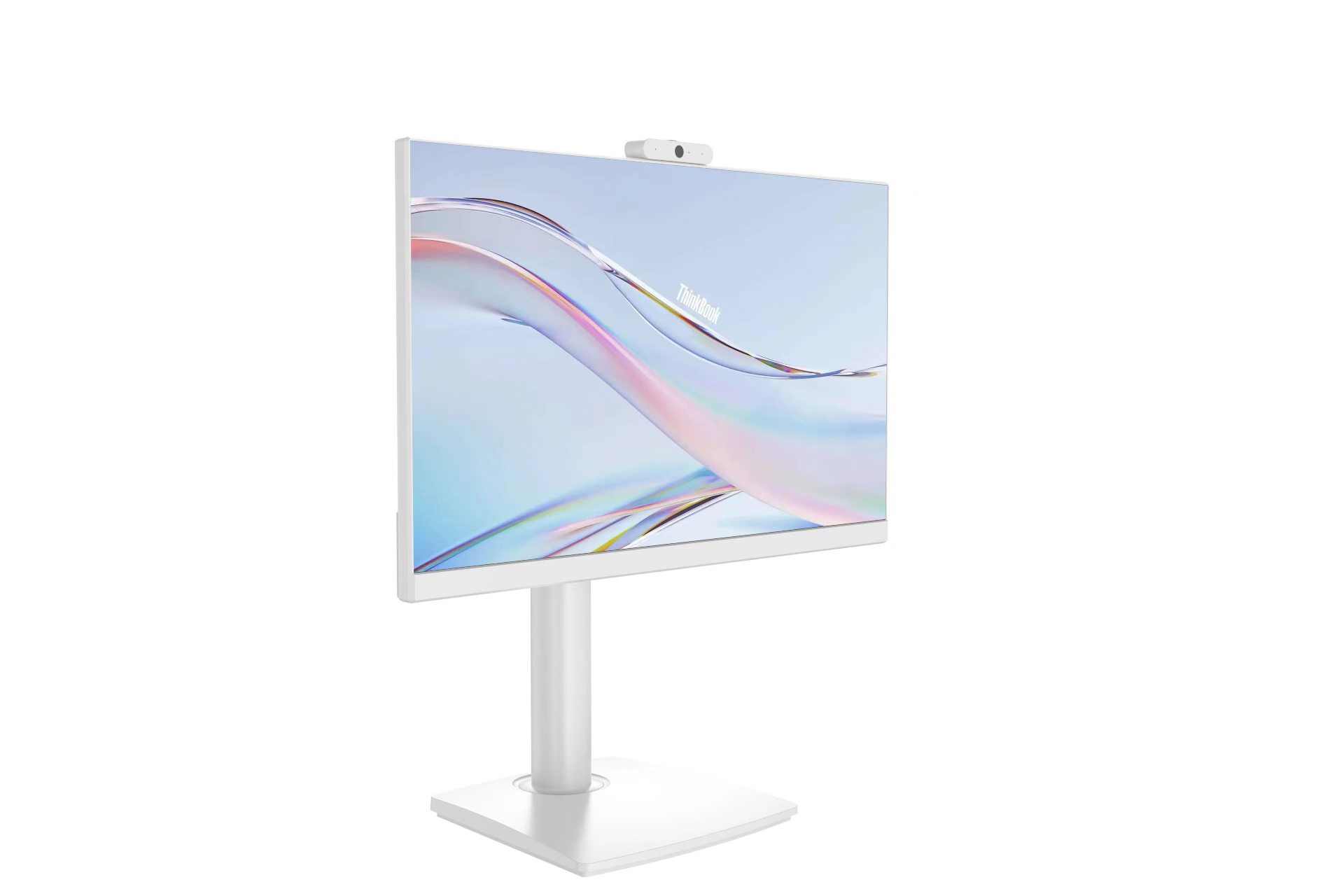

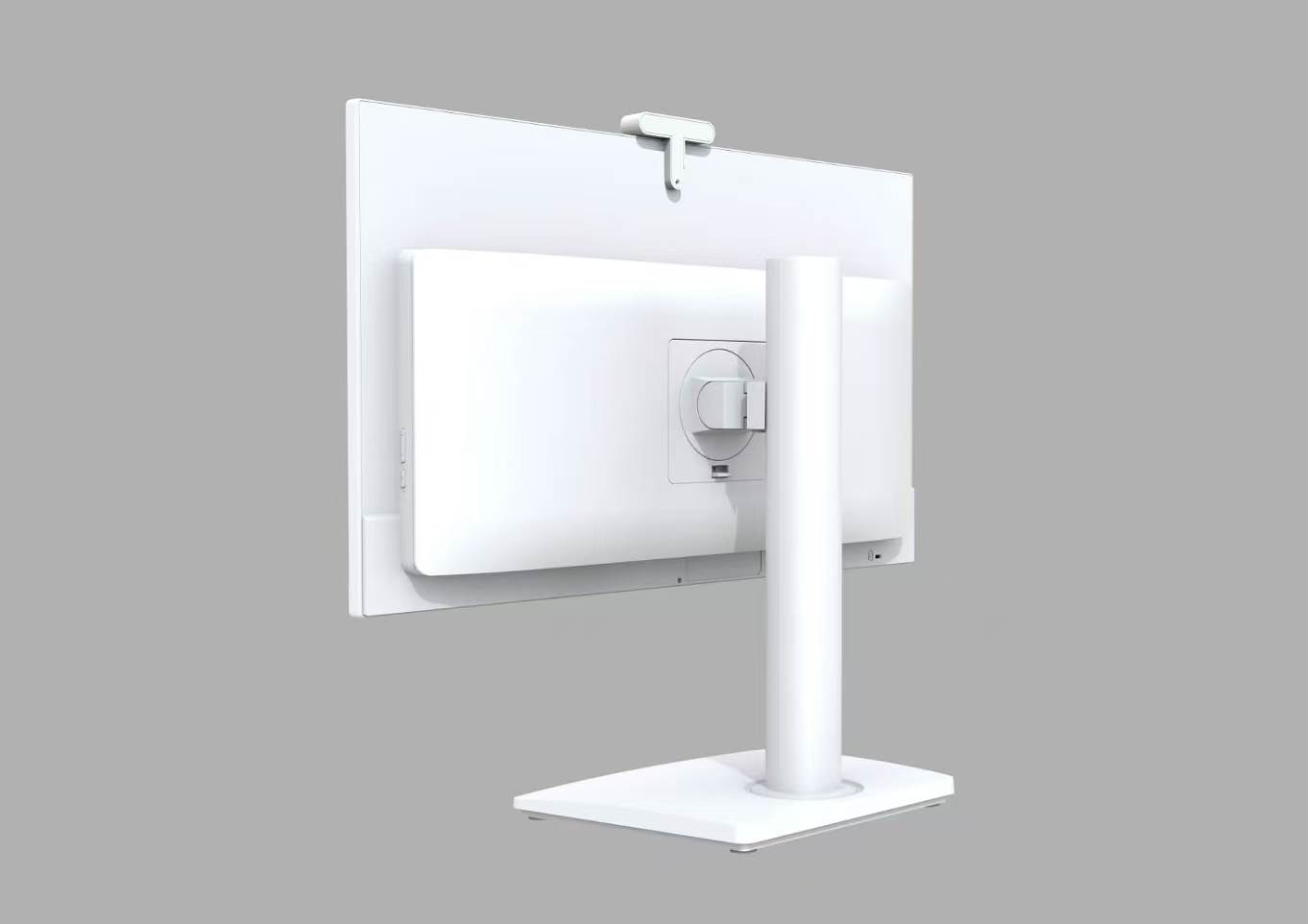

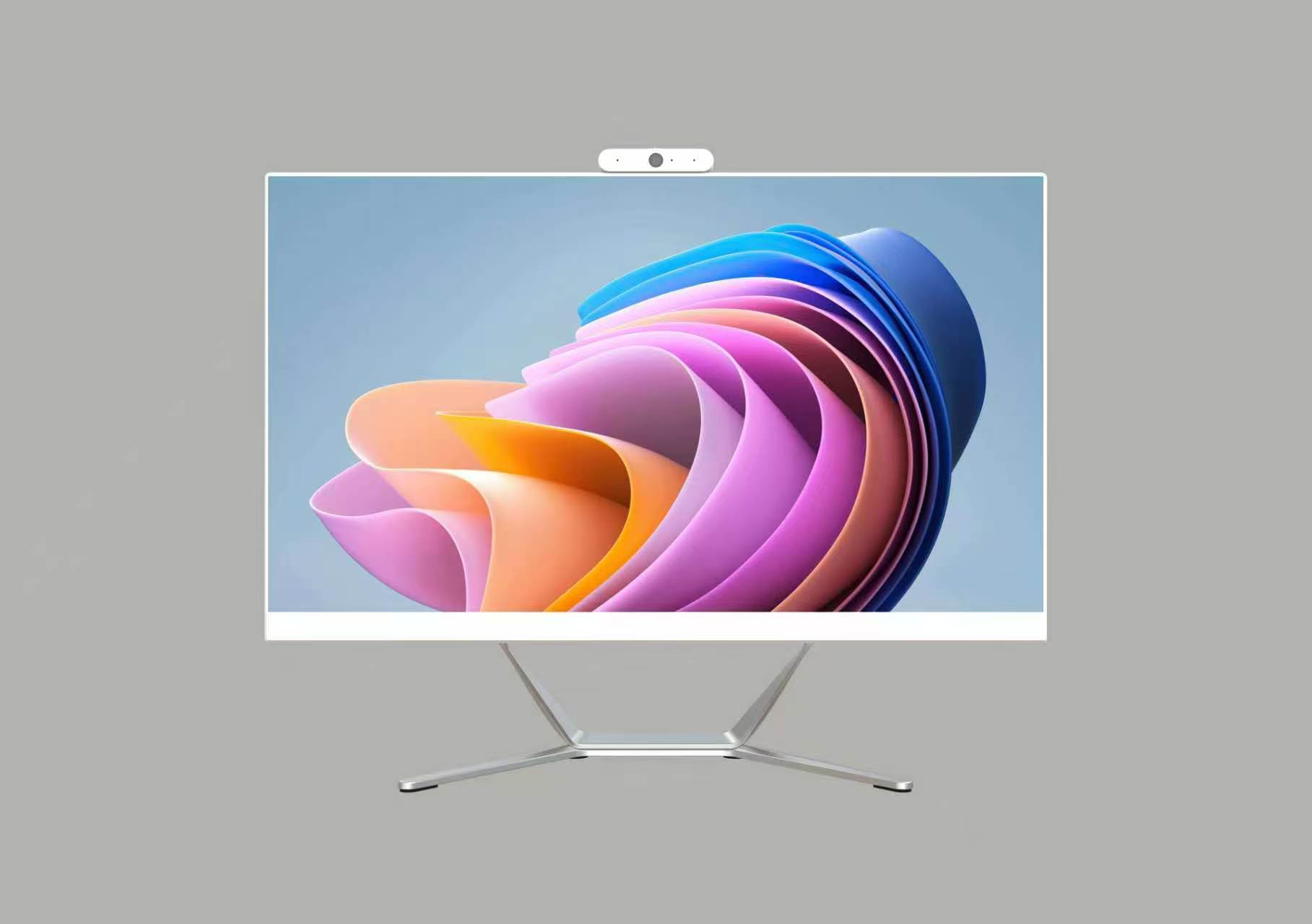

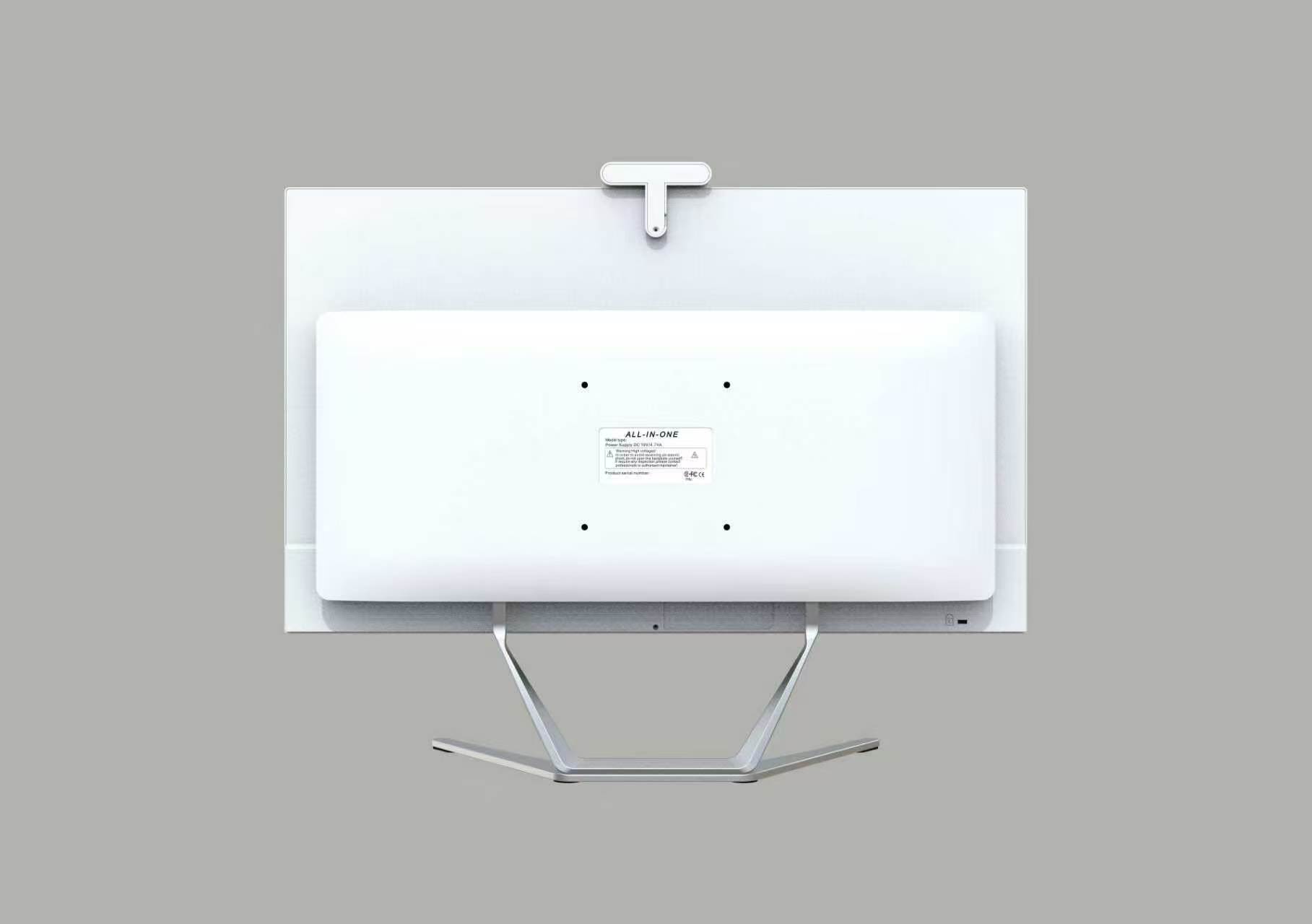

Versatile All-in-One PC – Choose Android or Windows, 23.8”–32”, Touch or Non‑Touch
This space‑saving All‑in‑One PC delivers the power of a full desktop in a sleek display. Run Android for lightweight apps or Windows for complete productivity. Select from 23.8″, 27″, or 32″ screens, with or without touch. Mount it on a desk or wall (VESA‑compatible) – it adapts to retail counters, classrooms, offices, and digital signage. One cable, clutter‑free performance, and enterprise‑grade reliability. See your ideal configuration today.
Specifications listed below are for reference only. For accurate configurations tailored to your specific needs, please contact our sales team.
| All in one specifics | Supports external USB device connection, supports HDMI output, supports Android 11 system, and can install multimedia advertising release software. With a built-in camera and microphone and supports wireless WIFI connection |
| Touch Function | Capacitive G+G multi-touch(OPTIONAL) |
| Other function |
Support wall-mounted（OPITIONAL） and bracket structure Supports Power-on boot . With a built-in wired network card and can be connected to an external network via an Ethernet cable |
Appearance and power
| Cover and appearance | Slim frame, Plastic material cover. Black & white for choice. |
| Max. Power comsumption | ≤95W |
| Standby | ≤0.5W |
LCD Specifics
| Screen size | 23.8’’ /27’’/32’’(16:9) |
| Display mode | LED lcd display |
| Resolution | 1920*1080P |
| Brightness/Contract | 300cd/m2 /1200：1 |
| View Angle： | V:178°，H:178° |
| Display Color | 16.7M |
| Working environment temperature | 0℃~45℃ |
System Specifics
| System | Windows 11 |
| CPU | Intel® Core™ Ultra processors 14th gen I5 125H |
| RAM | 2*SO-DIMM DDR5 4800MHz 16GB |
| ROM | 1 x M.2 M Key (supports PCIe x4 / SATA auto-adaptation); 1 x SATA 3.0 interface, 512GB SSD |
| Expansion Slots | 1 x M.2 E Key for Wi-Fi/Bluetooth module expansion; 1 x M.2 B Key slot (supports 4G/5G auto-adaptation) |
| Graphics | Intel® Arc™ graphics |
| Display out | LVDS1/EDP1 + HDMI + EDP2 + VGA |
| Multi-display support | four displays with synchronous and asynchronous modes |
| Audio | Onboard ALC897 audio decoder controller; integrated power amplifier NS4251 3W@4Ω |
| LAN | Onboard 1 x Intel i219-V (i219-LM optional) Gigabit LAN + optional 1 x Intel i226-V (2.5G) |
| I/O PORTS |
1*DC_IN 1*HDMI 1*VGA 1*RST Button (Restart/clean CMOS) 1*USB3.2 1*USB C 2*USB2.0 1*LAN1 (1*LAN2optioanl) 1*LINE_OU 1*MIC_IN |
| Speaker | 5W *2 |
| Wi-Fi | Support 802.11b/g/n Wireless Protocol |
| Camera | 8MP |
| Mic | Built-In |
| Mouse & Keyboard | Wireless mouse & keyboard (OPTIONAL) |
Touch Specifics (OPTIONAL)
| Touch technology | G+G capacity |
| Response size | ＞3mm |
| Accuracy | 2mm |
| Light transmittance | ＞95% |
| Touch input recognition | Finger |
| Scanning frequency | 200Hz |
| Interface | USB |
| Touch thickness | 0.3 mm ± 0.03 mm |
| Touch Resolution | 25ppi (Min.) |
| Touch area | 534.84(H) x 308.16(V)± 0.30 mm |
| Response time | 5ms |
| Life Span | ＞6,000,000 times Touch. |
| Working Voltage | DC+5V±5% |
| Power supply mode | USB |
| Anti-light interference | Normally use when strong light such as sunlight, incandescent lamps and fluorescent lamps changes |
| Electrostatic protection | Touch 8KV, Non-Touched 15KV |
Standard Accessories
| All-in-one PC | 1 PCS |
| Power Cable | 1 PCS |
| Bracket | 1PCS |
| Power Adapter | 1 PCS |
| Certificate of Qualification | 1 PCS |
